22.5mm LED INDICATORS
LP22-A230
Applications
Industrial Control Panel
Injection Molding Machines
Elevator Control Panel
Industrial Machinery
Download
Datasheet
Manual
FAQ
FEATURES
SPECIFICATION
ORDER CODE

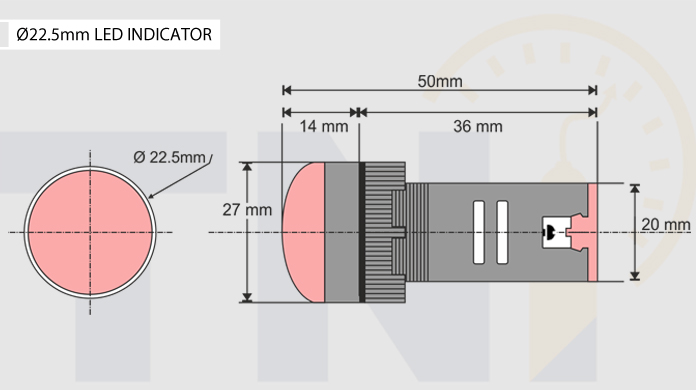

DIMENSION
ACCESSORIES
22.5mm dia cutout
4 LED Bright Luminance
All Colors Red, Green, Yellow, Blue, White And Amber Available
Voltages Available 230VAC, 110VAC, 24VDC
1 Year Warranty
TECHNICAL SPECIFICATON
Rated Voltage
230VAC, 110VAC, 24VDC
Operating Voltage
-20% to 10% of rated voltage
Rated Working Current
≤ 20mA max.
Voltage Fluctuation Range
2
0% (above 110V)
Operating Frequency
50/60Hz
Insulation Resistance
Ui ≤ 60V5MΩ
Withstand Voltage
2.5KV (AC effective value) 1min.
Continues Working Life
≥ 3,0000Hrs
Brightness
≤ 100cd/m
2
OTHER SPECIFICATION
Degree of Protection
IP20
Confirming of Standard
IEC60947-5-1, EN60947-5-1
MODEL
COLOUR
VOLT
MPQ
LP22-A230-R
RED
230V AC
10
LP22-A230-G
GREEN
10
LP22-A230-Y
YELLOW
10
LP22-A230-B
BLUE
10
LP22-A230-W
WHITE
10
LP22-A230-A
AMBER
10
LP22-D24-R
RED
24V DC
10
LP22-D24-G
GREEN
10
LP22-D24-Y
YELLOW
10
LP22-D24-B
BLUE
10
LP22-D24-W
WHITE
10
LP22-D24-A
AMBER
10
LP22-A110-R
RED
110V AC
10
LP22-A110-G
GREEN
10
LP22-A110-Y
YELLOW
10
LP22-A110-B
BLUE
10
LP22-A110-W
WHITE
10
LP22-A110-A
AMBER
10
