DC-AC SERIES

SOLID STATE RELAY

SRDA

Power Rating	: 25 W
Available Voltages	: 5V, 12V, 24V
Output Currents	: 5.0A(5V) ; 2.1A(12V) ; 1.1A(24V)
Phase	: 1 Phase
Mounting Type	: Bottom

Applications

Industrial Control Panel	Injection Molding Machines
Elevator Control Panel	Industrial Machinery

Download

Datasheet

Manual

FAQ

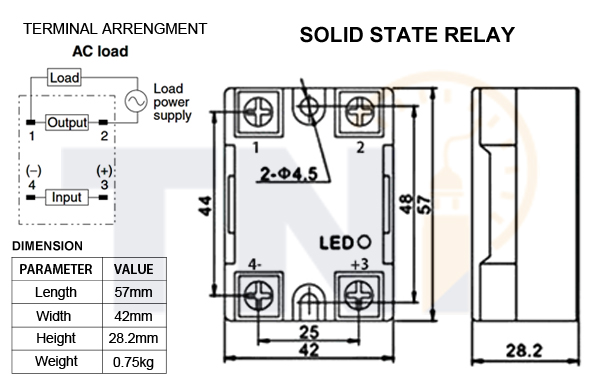

FEATURES SPECIFICATION ORDER CODE DIMENSION ACCESSORIES

Compact, Slim-Profile Design

LED Indicator Enables Monitoring Operation

Zero Cross For a Wide Range of Application

Build-in Snubber, Effectively Absorbs External Surge

Protective Cover For Greater Safety

Surface Mounting & DIN Rail Mounting with Heat Sin

1 Year Warranty

INPUT SPECIFICATION
Rated Voltage	5 to 24 VDC
Operating Voltage	4 to 32 VDC
Impedance	7mA max

OUTPUT SPECIFICATION
Rated Load Voltage	24 to 480VAC
Load Voltage Range	19 to 480VAC
Load Current	Model	With Heat Sink	Without Heat Sink
	SRDA-16	0.1 to 16A (at 400C)	0.1 to 3A (at 400C)
	SRDA-25	0.1 to 25A (at 400C)	0.1 to 4A (at 400C)
	SRDA-40	0.1 to 40A (at 400C)	0.1 to 6A (at 400C)
VDRM, VCEO Reference Value	600 V (VDRM)
Inrush Current	SRDA-16	150A (60Hz, 1 Cycle)
	SRDA-25	220A (60Hz, 1 Cycle)
	SRDA-40	440A (60Hz, 1 Cycle)

CHARACTERISTICS
Operation Time	1/2 of load power source cycle 1ms max.
Release Time	1/2 of load power source cycle 1ms max.
Output ON Voltage Drop	1.6V (RMS) max.
Leakage Current	5mA max. (at 100 VAC)
	10mA max. (at 200 VAC)
Insulation Resistance	100MΩ min. (at 500 VDC)
Vibration Resistance	Destruction: 10 to 55, 10Hz, 0.75mm [Single Amplitude (1.5mm Double Amplitude)]

Shock Resistance	Destruction: 1,000 m/s2
Ambient Temperature	Operating: -300C to 800C (with no icing or condensation)
	Storage: -300C to 1000C (with no icing or condensation)
Ambient Humidity	Operating: 45% to 85%

HEATSINK RECMMENDATIONS
We recommend that solid state relay modules be mounted to a heatsink sufficient to maintain the module’s base temperature at less than 850C under worst case ambient temperature and load conditions.
The heatsink mounting surface should be a smooth (30-40 micro-inch finish),flat (30-40 micro-inch flatness across mating area), un-painted surface which is clean and free of oxidation.
An even coating of thermal compound (Dow Corning DC340 or equivalent) should be applied to both the heatsink and module mounting surfaces and spread to a uniform depth of .002” to eliminate all air pockets.
The module should be mounted to the heatsink using two M3 screws.

Model	INPUT Voltage	Output VOLTAGE	RATED CURRENT
SRDA-16	DC	AC	16A

SRDA-25	DC	AC	25A

SRDA-40	DC	AC	40A
