SWITCH MODE POWER SUPPLY
D-60
Power Rating
: 60 W
Available Voltages
D60A
:
5V (CH1); 12V (CH2)
D60B
: 5V (CH1); 24V (CH2)
Output Currents
D60A : 4A (CH1); 3A (CH2)
D60B : 3A (CH1); 1.8A (CH2)
Phase
: 1 Phase
Mounting Type
: Bottom
Applications
Industrial Control Panel
Injection Moulding Machines
Elevator Control Panel
Industrial Machinery
Download
Datasheet
Manual
FAQ
FEATURES
SPECIFICATION
ORDER CODE

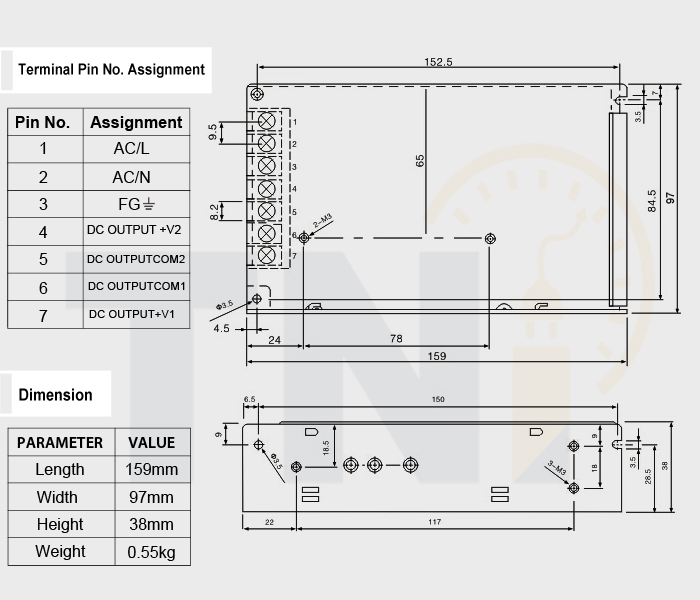

DIMENSION
ACCESSORIES
Compact, Low Cost & High Reliablity
Protection : Short circuit, overvoltage & overload
100% Full load Burn-in Test
Cooling By Free Air Convection
LED Indicator For Power On
CE Marked on all Models
1 Year Warranty
INPUT SPECIFICATION
Voltage Range
100-120VAC
200-240VAC
Frequency Range
47-63Hz
Efficiency
D60A: 73%
D60B: 76%
AC Current (typ.)
2A / 115VAC ; 1A / 230VAC
Inrush Current(typ.)
30A / 115VAC ; 60A / 230VAC (for cold start at 25
0
C)
Leakage Current
<3.5mA / 240VAC
OUTPUT SPECIFICATION
Rated Current
MODEL
CH1
CH2
D60A
4A
3A
D60B
3A
1.8A
Rated Power
60Watts
Voltage ADJ. Range
-5 to 10% (with V.ADJ)
Voltage Tolerance
MODEL
CH1
CH2
D60A
2%
6%
D60B
2%
5%
Ripple & Noise (max)
MODEL
CH1
CH2
D60A
75mVp-p
150mVp-p
D60B
75mVp-p
150mVp-p
Setup Time
800ms / 115VAC ; 300ms / 230VAC at full load
Rise Time
50ms / 115VAC ; 50ms / 230VAC at full load
Hold Time(typ.)
10ms / 115VAC ; 80ms / 230VAC at full load
ENVIRONMENT
Working Temperature
-10
0
C to 60
0
C (derating is required according to temperature)
Working Humidity
20% to 90% RH
Storage Temperature
-20
0
C to 85
0
C (with no icing or condensation)
Storage Humidity
10% ~ 95% RH
Vibration Resistance
10 to 500Hz, 10min/1cycle (2G) for 60 minutes each in X,Y,Z directions
PROTECTION
Overload
105% to 150% rated load current
Protection Type: Hiccup mode, recovers automatically after fault condition is remove
Overvoltage
115% to 135% rated load current
Protection Type : Shutdown output voltage,
re-power on to recover
STANDARDS
Safety Standards
Meet the UL1012, UL60950, EN60950 requirement
EMC Standards
Meet the EN55022, EN61000-3-2,3,
EN61000-4-2,3,4,5,6,8,11, ENV50204, EN55024
CLASS A equipment
SECURITY
Isolation Resistance
I/P and O/P ; I/P and FG ; O/P and FG :100MΩ at 500VDC, 25
0
C, 70% RH
Dielectric Strength
Between I/P and O/P : 1.5kVAC for 1 min
Between I/P and F.G : 1.5kVAC for 1 min
Between O/P and F.G : 0.5kVAC for 1 min
Model
INPUT VOLTAGES
Output VOLTAGE
Power Rating (Combined)
D60A
5VDC (CH1)
4.0A
60W
12VDC (CH2)
3.0A
D60B
5VDC (CH1)
3.0A
60W
24VDC (CH2)
1.8A
